Producton Description of Pet Food Processing Machine Dog Cat Used
Animal Feed Maker Machine price Poultry Foods Making Machine
Suppliers
The charm of extrusion technology is that it can provide unexpected
processing methods to people .Zhuoheng company combined with the
needs of the market to develop the pet food machines which adopt
unique processing technology and equipment configuration,using
grain flour,meat meal,fish meal,soyabean meal etc as raw materials
to produce a varity of shapes of pet food and fish feed with
special tastes and easy to digeat , welcomed by the pet market.
Process flow of Pet Food Processing Machine Dog Cat Used Animal
Feed Maker Machine price Poultry Foods Making Machine Suppliers
Material mixing→extrusion shaping→vibrating
spread→drying→flavoring→cooling & convey→packaging
Raw material of Pet Food Processing Machine Dog Cat Used Animal
Feed Maker Machine price Poultry Foods Making Machine Suppliers
The main raw materials of our fish feed making machine are, rice
flour, corn flour, wheat flour, low temperature soya flakes meal,
rice bran , wheat bran, fish powder, bone powder etc.
Final product of Pet Food Processing Machine Dog Cat Used Animal
Feed Maker Machine price Poultry Foods Making Machine Suppliers
floating/sinking fish food
diameter from 1.0mm to 8.0mm
The shape and size of fish food can be customized by changing the
mold.
4. Technical parameter of Pet Food Processing Machine Dog Cat Used
Animal Feed Maker Machine price Poultry Foods Making Machine
Suppliers
Model | Installed power | Real power | Output | Dimension |
ZH65 | 45 kw | 22kw | 120-150kg/h | 3000x800x2100mm |
ZH70 | 50kw | 37kw | 280-320kg/h | 3200x1000x2000mm |
ZH85 | 110kw | 75kw | 450-550kg/h | 3800x1300x2000mm |
ZH95 | 151kw | 110kw | 1000-1200kg/h | 4800x1800x4800mm |
Main Features
1) Simple structure in linear type ,easy in installation and
maintation.
2) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and
closing.
4) Running in a high automatization and intellectualization,no
pollution
5) Apply a linker to connect with the air conveyor ,which can
directly inline with filling machine .
Detailed Image
| Blend Mixer Motor: 3kw, 4kw, 7.5kw etc. Capacity: 60kg/time, 100kg/time, 300kg/time, 500kg/time etc. Material: stainless steel, carbon steel Zhuoheng's Blend Mixer is a high standard two-way ribbon mixing
machine. It includes material tank, screw mixing paddles and drive
parts. |
Double Screw Extruder Motor: 22kw, 30kw, 55kw, 75kw etc. Capacity: 120-150kg/h, 200-250kg/h, 300kg/h, 500kg/h, 1000kg/h etc. Material: Screw materials 38CrMoAl stainless steel, carbon steel Fish feed extrudr unit consist of bucket elevator, Storage Silo,
material conveyor, conditioner, feeder, extruder, electric
controller and operation platform. The extruder includes drive
system, extrusion system, cutting system, heating system,
lubricating system and extraction steam system. |
|
|

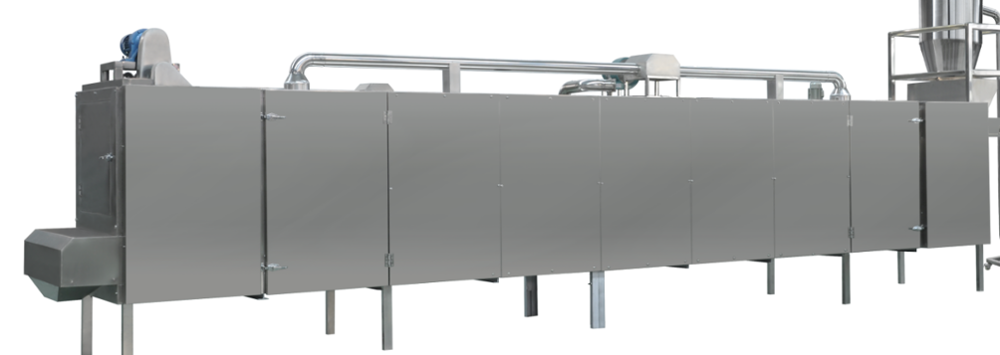

Dryer Type: 5 layers 5 meters, 5 layers 7 meters, 5 layers 12meters, 7 layers
12 meters. Heating source: electric, gas, steam, oil, diesel. Material: stainless steel, carbon steel
|
Single Drum Flavoring Line Motor: 0.75kw, 1.1kw etc. Capacity: 100kg-1000kg/h Material: stainless steel
|
|
|

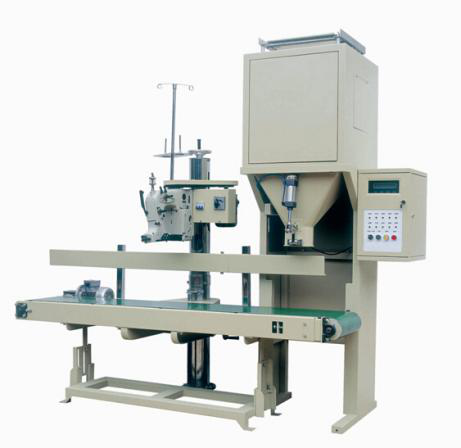

Packing Machine Type: automatic, semi-automatic. Weight range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material: stainless steel, carbon steel
|
Our Company
Jinan Zhuoheng Extrusion Machinery Co., Ltd.
Jinan Zhuoheng Extrusion Machinery Co, Ltd. a shareholders owned
and operated business established more than 10 years ago is
considered as one of Chinese most respected and experienced
suppliers of snack food equipment, accessories and services.
We insist on improving the standard of products and try our best to
serve our clients. Our goal is to become the biggest and best snack
food processing machinery manufacturer in China We hope our
products could benefit clients from all over the world.
Certification
Our Service
Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. |  After-Sales Service
* Training how to instal the machine, training how to use the
machine. * Engineers available to service machinery overseas. |
Pcking&Delivering
| Packing |
Packing details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. |
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion
machine.
We have own factory and R&D department. SGS has certified our
company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba's Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4. What about the lead time?
A: Regular products:20-30 working days
Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer's
formula.
Q6. What after-services do you provide?
A: Send engineers for installation, trial running and training
workers at customer's site.
Handling the problems occurred during use. Supply spare and wearing
parts on discount.
Help customers to solve any other problems .
Q7. What's the warranty?
A: Our warranty is 2 years.
Q8. What's the price?
The price is different according to the different capacity and the
voltage in your local area, more information please kindly send an
inquiry !
